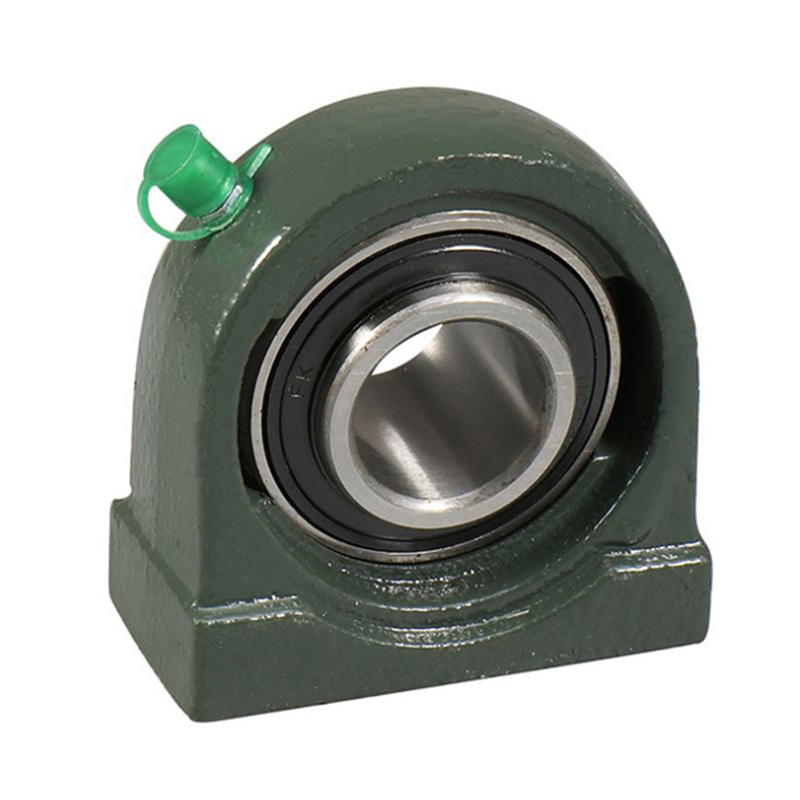

UCPA Pilow Block Bearing
| Dimension | ||||||||
| SPEC.1 | Bore dia | H | L | J | A | K | H2 | B |
| UCPA201 | 12(mm) | 30.2 | 76 | 52 | 38 | M10 | 62 | 31 |
| UCPA201-8 | 1/2(inch) | 30.2 | 76 | 52 | 38 | M10 | 62 | 31 |
| UCPA202 | 15(mm) | 30.2 | 76 | 52 | 38 | M10 | 62 | 31 |
| UCPA202-10 | 5/8(inch) | 30.2 | 76 | 52 | 38 | M10 | 62 | 31 |
| UCPA202-9 | 9/16(inch) | 30.2 | 76 | 52 | 38 | M10 | 62 | 31 |
| UCPA203 | 17(mm) | 30.2 | 76 | 52 | 38 | M10 | 62 | 31 |
| UCPA203-11 | 11/16(inch) | 30.2 | 76 | 52 | 38 | M10 | 62 | 31 |
| UCPA204 | 20(mm) | 30.2 | 76 | 52 | 38 | M10 | 62 | 31 |
| UCPA204-12 | 3/4(inch) | 30.2 | 76 | 52 | 38 | M10 | 62 | 31 |
| UCPA205 | 25(mm) | 36.5 | 84 | 56 | 38 | M10 | 72 | 34.1 |
| UCPA205-13 | 13/16(inch) | 36.5 | 84 | 56 | 38 | M10 | 72 | 34.1 |
| UCPA205-14 | 7/8(inch) | 36.5 | 84 | 56 | 38 | M10 | 72 | 34.1 |
| UCPA205-15 | 15/16(inch) | 36.5 | 84 | 56 | 38 | M10 | 72 | 34.1 |
| UCPA205-16 | 1(inch) | 36.5 | 84 | 56 | 38 | M10 | 72 | 34.1 |
| UCPA206 | 30(mm) | 42.9 | 94 | 66 | 48 | M14 | 84 | 38.1 |
| UCPA206-17 | 1-1/16(inch) | 42.9 | 94 | 66 | 48 | M14 | 84 | 38.1 |
| UCPA206-18 | 1-1/8(inch) | 42.9 | 94 | 66 | 48 | M14 | 84 | 38.1 |
| UCPA206-19 | 1-3/16(inch) | 42.9 | 94 | 66 | 48 | M14 | 84 | 38.1 |
| UCPA206-20 | 1-1/4(inch) | 42.9 | 94 | 66 | 48 | M14 | 84 | 38.1 |
| UCPA207 | 35(mm) | 47.6 | 110 | 80 | 48 | M14 | 95 | 42.9 |
| UCPA207-20 | 1-1/4(inch) | 47.6 | 110 | 80 | 48 | M14 | 95 | 42.9 |
| UCPA207-21 | 1-5/16(inch) | 47.6 | 110 | 80 | 48 | M14 | 95 | 42.9 |
| UCPA207-22 | 1-3/8(inch) | 47.6 | 110 | 80 | 48 | M14 | 95 | 42.9 |
| UCPA207-23 | 1-7/16(inch) | 47.6 | 110 | 80 | 48 | M14 | 95 | 42.9 |
| UCPA208 | 40(mm) | 49.2 | 116 | 84 | 54 | M14 | 100 | 49.2 |
| UCPA208-24 | 1-1/2(inch) | 49.2 | 116 | 84 | 54 | M14 | 100 | 49.2 |
| UCPA208-25 | 1-9/16(inch) | 49.2 | 116 | 84 | 54 | M14 | 100 | 49.2 |
| UCPA209 | 45(mm) | 54.2 | 120 | 90 | 54 | M14 | 108 | 49.2 |
| UCPA209-26 | 1-5/8(inch) | 54.2 | 120 | 90 | 54 | M14 | 108 | 49.2 |
| UCPA209-27 | 1-11/16(inch) | 54.2 | 120 | 90 | 54 | M14 | 108 | 49.2 |
| UCPA209-28 | 1-3/4(inch) | 54.2 | 120 | 90 | 54 | M14 | 108 | 49.2 |
| UCPA210 | 50(mm) | 57.2 | 130 | 94 | 60 | M16 | 116 | 51.6 |
| UCPA210-29 | 1-13/16(inch) | 57.2 | 130 | 94 | 60 | M16 | 116 | 51.6 |
| UCPA210-30 | 1-7/8(inch) | 57.2 | 130 | 94 | 60 | M16 | 116 | 51.6 |
| UCPA210-31 | 1-15/16(inch) | 57.2 | 130 | 94 | 60 | M16 | 116 | 51.6 |
| UCPA210-32 | 2(inch) | 57.2 | 130 | 94 | 60 | M16 | 116 | 51.6 |
| UCPA211 | 55(mm) | 63.5 | 140 | 104 | 66 | M16 | 125 | 55.6 |
| UCPA211-32 | 2(inch) | 63.5 | 140 | 104 | 66 | M16 | 125 | 55.6 |
| UCPA211-33 | 2-1/16(inch) | 63.5 | 140 | 104 | 66 | M16 | 125 | 55.6 |
| UCPA211-34 | 2-1/8(inch) | 63.5 | 140 | 104 | 66 | M16 | 125 | 55.6 |
| UCPA211-35 | 2-3/16(inch) | 63.5 | 140 | 104 | 66 | M16 | 125 | 55.6 |
| UCPA212 | 60(mm) | 69.9 | 150 | 114 | 68 | M16 | 138 | 65 |
| UCPA212-36 | 2-1/4(inch) | 69.9 | 150 | 114 | 68 | M16 | 138 | 65 |
| UCPA212-37 | 2-5/16(inch) | 69.9 | 150 | 114 | 68 | M16 | 138 | 65 |
| UCPA212-38 | 2-3/8(inch) | 69.9 | 150 | 114 | 68 | M16 | 138 | 65 |
| UCPA212-39 | 2-7/16(inch) | 69.9 | 150 | 114 | 68 | M16 | 138 | 65 |
| UCPA213 | 65(mm) | 76.2 | 160 | 124 | 70 | M16 | 150 | 65 |
| UCPA213-40 | 2-1/2(inch) | 76.2 | 160 | 124 | 70 | M16 | 150 | 65 |
| UCPA213-41 | 2-16/9(inch) | 76.2 | 160 | 124 | 70 | M16 | 150 | 65 |
