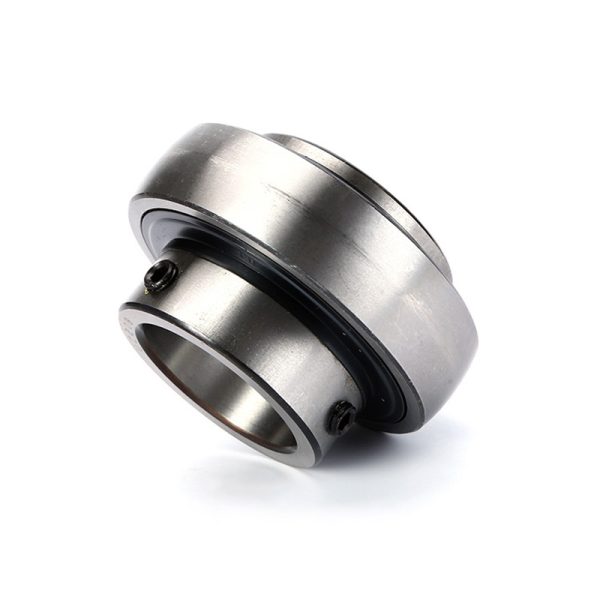

UC Insert Bearing

UC Insert Bearing 01

Dimension Load rating
SPEC.1 Bore dia Dsp Bi C S A C Co Weight
UC201 12(mm) 47 31 16 12.7 5 12890 6490 0.21
UC201-8 1/2(inch) 47 31 16 12.7 5 12890 6490 0.21
UC202 15(mm) 47 31 16 12.7 5 12890 6490 0.2
UC202-10 5/8(inch) 47 31 16 12.7 5 12890 6490 0.19
UC203 17(mm) 47 31 16 12.7 5 12890 6490 0.18
UC204 20(mm) 47 31 16 12.7 5 12890 6490 0.17
UC204-12 3/4(inch) 47 31 16 12.7 5 12890 6490 0.18
UC205 25(mm) 52 34 17 14.3 5.5 14000 7560 0.2
UC205-14 7/8(inch) 52 34 17 14.3 5.5 14000 7560 0.23
UC205-15 15/16(inch) 52 34 17 14.3 5.5 14000 7560 0.21
UC205-16 1(inch) 52 34 17 14.3 5.5 14000 7560 0.2
UC206 30(mm) 62 38.1 19 15.9 6 19510 11160 0.33
UC206-17 1-1/16(inch) 62 38.1 19 15.9 6 19510 11160 0.37
UC206-18 1-1/8(inch) 62 38.1 19 15.9 6 19510 11160 0.35
UC206-19 1-3/16(inch) 62 38.1 19 15.9 6 19510 11160 0.33
UC206-20 1-1/4(inch) 62 38.1 19 15.9 6 19510 11160 0.3
UC207 35(mm) 72 42.9 20 17.5 6.5 25640 15330 0.4
UC207-20 1-1/4(inch) 72 42.9 20 17.5 6.5 25640 15330 0.55
UC207-21 1-5/16(inch) 72 42.9 20 17.5 6.5 25640 15330 0.52
UC207-22 1-3/8(inch) 72 42.9 20 17.5 6.5 25640 15330 0.49
UC207-23 1-7/16(inch) 72 42.9 20 17.5 6.5 25640 15330 0.46
UC208 40(mm) 80 49.2 21 19 8 28890 17110 0.65
UC208-24 1-1/2(inch) 80 49.2 21 19 8 28890 17110 0.68
UC208-25 1-9/16(inch) 80 49.2 21 19 8 28890 17110 0.67
UC209 45(mm) 85 49.2 22 19 8 32670 18220 0.7
UC209-26 1-5/8(inch) 85 49.2 22 19 8 32670 18220 0.8
UC209-27 1-11/16(inch) 85 49.2 22 19 8 32670 18220 0.76
UC209-28 1-3/4(inch) 85 49.2 22 19 8 32670 18220 0.71
UC210 50(mm) 90 51.6 24 19 9 35110 20840 0.8
UC210-30 1-7/8(inch) 90 51.6 24 19 9 35110 20840 0.87
UC210-31 1-15/16(inch) 90 51.6 24 19 9 35110 20840 0.82
UC210-32 2(inch) 90 51.6 24 19 9 35110 20840 0.77
UC211 55(mm) 100 55.6 25 22.2 9 43330 26000 1.08
UC211-32 2(inch) 100 55.6 25 22.2 9 43330 26000 1.23
UC211-34 2-1/8(inch) 100 55.6 25 22.2 9 43330 26000 1.18
UC211-35 2-3/16(inch) 100 55.6 25 22.2 9 43330 26000 1.06
UC212 60(mm) 110 65 27 25.4 10.5 51110 36000 1.53
UC212-36 2-1/4(inch) 110 65 27 25.4 10.5 51110 36000 1.66
UC212-38 2-3/8(inch) 110 65 27 25.4 10.5 51110 36000 1.51
UC212-39 2-7/16(inch) 110 65 27 25.4 10.5 51110 36000 1.44
UC213 65(mm) 120 65 28 25.4 12 56890 39560 1.85
UC213-40 2-1/2(inch) 120 65 28 25.4 12 56890 39560 1.94
UC214 70(mm) 125 74.5 30 30.2 12 62220 44000 2.1
UC214-43 2-11/16(inch) 125 74.5 30 30.2 12 62220 44000 2.2
UC214-44 2-3/4(inch) 125 74.5 30 30.2 12 62220 44000 2.11
UC215 75(mm) 130 77.8 30 33.3 12 66220 48890 2.35
UC215-47 2-15/16(inch) 130 77.8 30 33.3 12 66220 48890 2.39
UC215-48 3(inch) 130 77.8 30 33.3 12 66220 48890 2.26
UC216 80(mm) 140 82.5 33 33.3 14 72500 54200 2.82
UC216-50 3-1/8(inch) 140 82.5 33 33.3 14 72500 54200 2.9
UC217 85(mm) 150 85.7 35 34.1 14 83200 63800 3.46
UC217-52 3-1/4(inch) 150 85.7 35 34.1 14 83200 63800 3.56
UC218 90(mm) 160 96 37 39.7 15 96000 71500 4.53
UC218-56 3-1/2(inch) 160 96 37 39.7 15 96000 71500 4.62
Dimension Load rating
SPEC.1 Bore dia D B C S1 S C Co Weight
UC305 25(mm) 62 38 21 15 23 17.22 11.39 0.44
UC305-14 7/8(inch) 62 38 21 15 23 17.22 11.39 0.44
UC305-15 15/16(inch) 62 38 21 15 23 17.22 11.39 0.44
UC305-16 1(inch) 62 38 21 15 23 17.22 11.39 0.44
UC306 30(mm) 72 43 23 17 26 20.77 14.17 0.56
UC306-18 1-1/8(inch) 72 43 23 17 26 20.77 14.17 0.56
UC306-19 1-3/16(inch) 72 43 23 17 26 20.77 14.17 0.56
UC307 35(mm) 80 48 25 19 29 25.66 17.92 0.71
UC307-20 1-1/4(inch) 80 48 25 19 29 25.66 17.92 0.71
UC307-21 1-5/16(inch) 80 48 25 19 29 25.66 17.92 0.71
UC307-22 1-3/8(inch) 80 48 25 19 29 25.66 17.92 0.71
UC308 40(mm) 90 52 27 19 33 31.35 22.38 1
UC308-24 1-1/2(inch) 90 52 27 19 33 31.35 22.38 1
UC308-25 1-9/16(inch) 90 52 27 19 33 31.35 22.38 1
UC309 45(mm) 100 57 30 22 35 40.66 30 1.28
UC309-26 1-5/8(inch) 100 57 30 22 35 40.66 30 1.28
UC309-27 1-11/16(inch) 100 57 30 22 35 40.66 30 1.28
UC309-28 1-3/4(inch) 100 57 30 22 35 40.66 30 1.28
UC310 50(mm) 110 61 32 22 39 47.58 35.71 1.65
UC310-30 1-7/8(inch) 110 61 32 22 39 47.58 35.71 1.65
UC310-31 1-15/16(inch) 110 61 32 22 39 47.58 35.71 1.65
UC311 55(mm) 120 66 34 25 41 55.05 41.91 2.07
UC311-32 2(inch) 120 66 34 25 41 55.05 41.91 2.07
UC311-34 2-1/8(inch) 120 66 34 25 41 55.05 41.91 2.07
UC311-35 2-3/16(inch) 120 66 34 25 41 55.05 41.91 2.07
UC312 60(mm) 130 71 36 26 45 62.88 48.6 2.59
UC312-36 2-1/4(inch) 130 71 36 26 45 62.88 48.6 2.59
UC312-38 2-3/8(inch) 130 71 36 26 45 62.88 48.6 2.59
UC312-39 2-7/16(inch) 130 71 36 26 45 62.88 48.6 2.59
UC313 65(mm) 140 75 38 30 45 72.2 56.68 3.15
UC313-40 2-1/2(inch) 140 75 38 30 45 72.2 56.68 3.15
UC314 70(mm) 150 78 40 33 45 80 63.48 3.83
UC314-44 2-3/4(inch) 150 78 40 33 45 80 63.48 3.83
UC315 75(mm) 160 82 42 32 50 87.25 71.67 4.59
UC315-48 3(inch) 160 82 42 32 50 87.25 71.67 4.59
UC316 80(mm) 170 86 44 34 52 94.5 80.3 5.4
UC317 85(mm) 180 96 46 40 56 102.05 89.52 6.58
UC317-52 3-1/4(inch) 180 96 46 40 56 102.05 89.52 6.58
UC318 90(mm) 190 96 48 40 56 110.81 100.76 7.34
UC318-56 3-1/2(inch) 190 96 48 40 56 110.81 100.76 7.34
UC319 95(mm) 200 103 50 41 62 120.51 113.75 8.69
UC319-60 3-3/4(inch) 200 103 50 41 62 120.51 113.75 8.69
UC320 100(mm) 215 108 54 42 66 133.06 131.18 10.8
UC320-64 4(inch) 215 108 54 42 66 133.06 131.18 10.8
UC321 105(mm) 225 112 56 44 68 141.3 142.84 12.2
UC322 110(mm) 240 117 60 46 71 157.66 167.64 14.3
UC324 120(mm) 260 126 64 51 75 175.07 194.42 18.5
UC326 130(mm) 280 135 68 54 81 194.93 226.71 23
UC328 140(mm) 300 145 72 59 86 211.38 253.93 28.5
